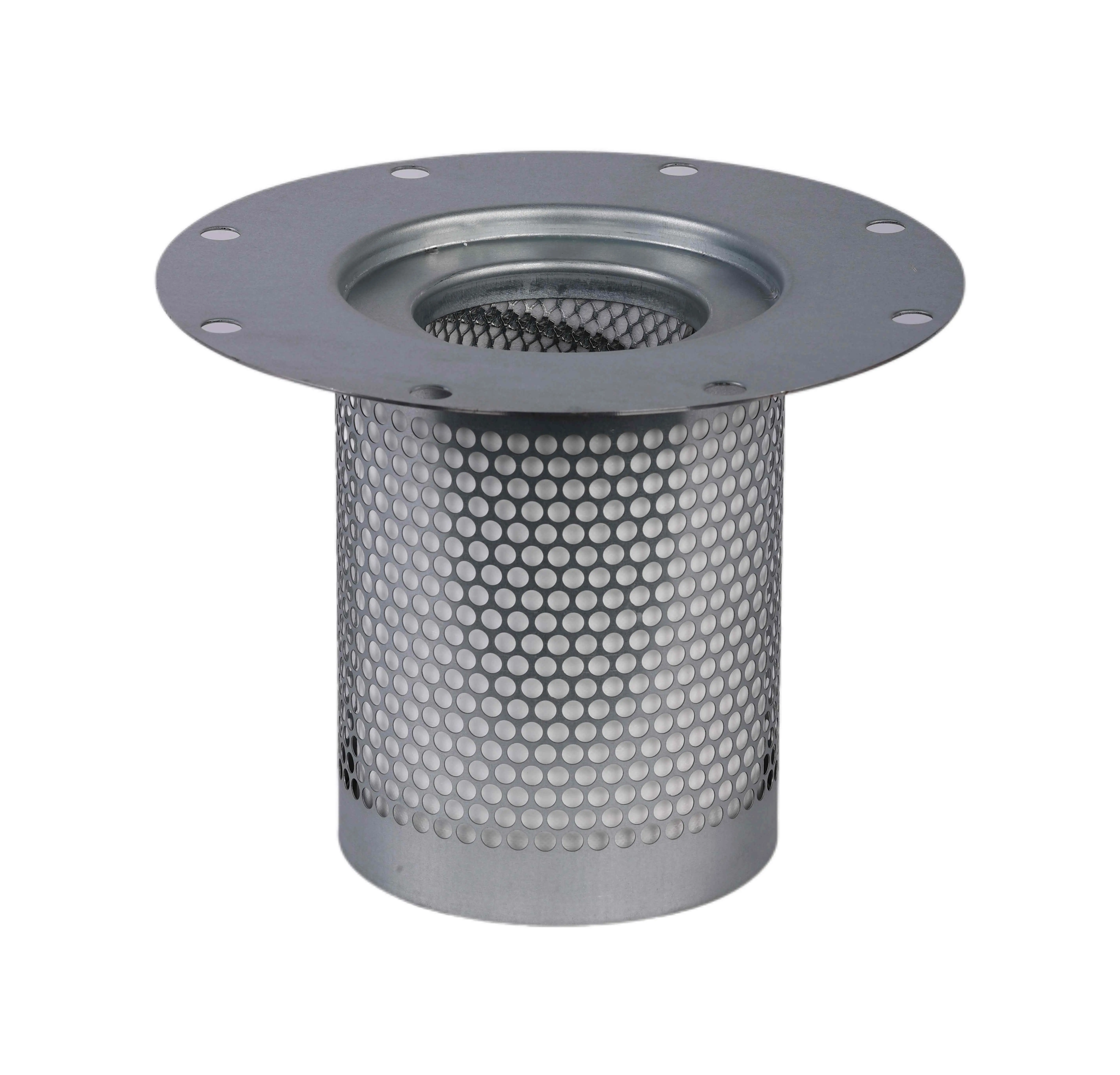

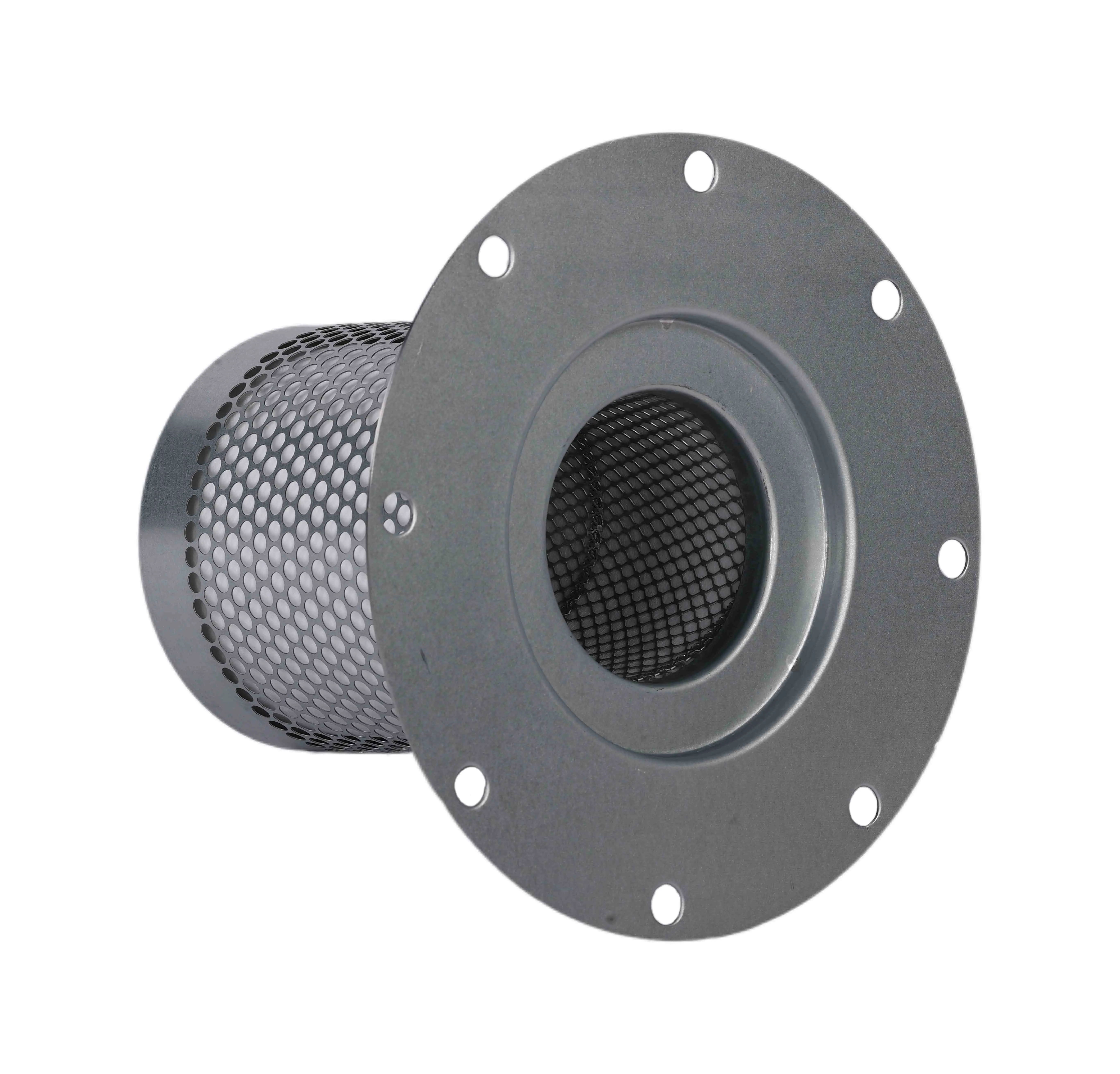

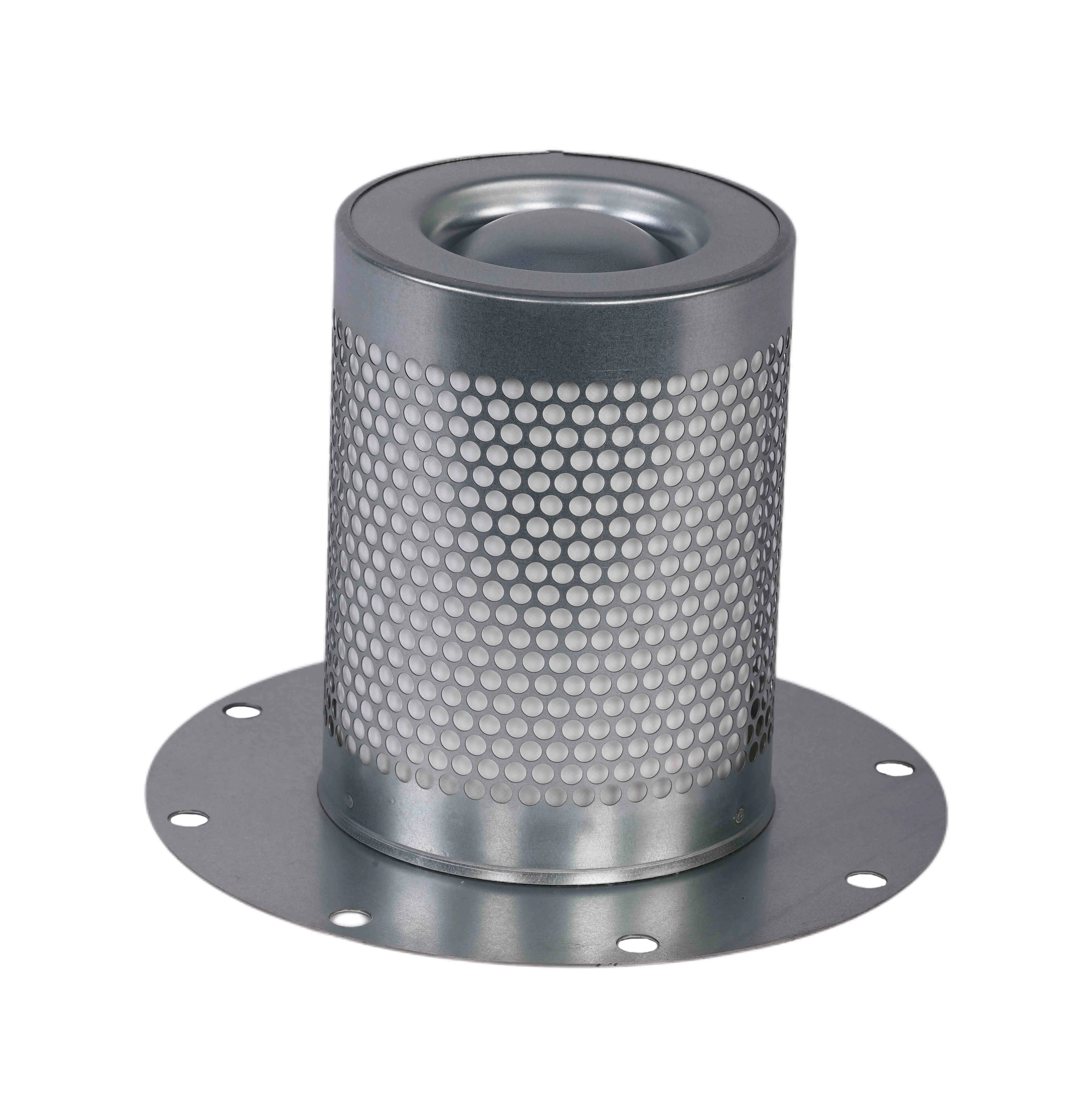

OEM AIR COMPRESSOR OIL SEPARATOR DC3065 1613 6880 00 REPLACEMENT Suppliers, Factory

JCTECH Part Number: JC A01 17 230

Country of Origin: CHINA

HS Code: 8421999090

Brand reference: ATLAS COPCO

Printing: According to Customer Requirements

Send Inquiry

Product Description

Introduction

The main features of 1613 6880 00 is small size, compact structure, no moving parts and easy installation. Its main function is to use the difference in density between oil and gas to separate the oil, gas, water and other components in the mixture under low-pressure conditions to prevent cavitation, gas lock and other faults, and improve equipment operation efficiency and reliability. It is separating the oil from compressor air filter parts , make the compressed air cleaner, and keep oil clean to return back oil tank.

1613 6880 00 is made of ultra-fine glass fiber composite filter material produced by HV and Lydall in the United States. Under normal operating conditions, compressed air oil mist particles can be controlled to below 0.1μm. At rated operating pressure and rated flow, the initial saturation pressure drop is no more than 0.02MPa. Under normal operating conditions, with a pressure drop no more than 0.1MPa, the oil-gas separator has a service life of no less than 4000 hours.

Product Details

Parameter	Specification
Using pressure	8-10Bar
Flow rate	6m³/min
Seal	Gasket sealing
Flange dimension	300MM
Outer diameter	170MM
Inner diameter	110MM
Total height	230MM
Filter material	HV fiber glass

Cross Reference

Brand	Part Number
Atlas Copco	1613688000
Atlas Copco	2901021300
Atlas Copco	1613688001
Atlas Copco	4900051281
Atlas Copco	2901021301
Atlas Copco	2913021300
Sotras	DC 3065/DC3065

Application

After the emergence of low pressure air compressor, special requirements of textile and glass industries for production technologies are satisfied. By contrast of ordinary pressure compressed air, low pressure compressed air is more environmentally friendly and energy-saving. Through experimental analysis, its found that the filtering area in the limited space is larger and the structure is more rational. The compressed air oil separator with lower pressure drop satisfies specific industrial requirements.

Frequently Asked Questions

Q What are the design characteristics and benefits of the 1613 6880 00 separator?

It features a small size, compact structure, no moving parts, and easy installation. It optimizes equipment operation efficiency and reliability by preventing cavitation and gas lock.

Q What material is used for the filtration media in this product?

It is constructed using high-quality ultra-fine glass fiber composite filter materials manufactured by HV and Lydall in the United States.

Q What is the expected service life under standard working conditions?

Under normal operating parameters with a pressure drop not exceeding 0.1MPa, the oil-gas separator maintains a service lifespan of at least 4000 hours.

Q Which industries specifically require this low-pressure separator configuration?

It is designed to satisfy the specific environmental, energy-saving, and production technology requirements of both the textile and glass industries.

Q What pressure limits are suitable for the operation of this separator?

The unit operates optimally under pressures of 8 to 10 Bar, with an initial saturation pressure drop of no more than 0.02MPa at rated flows.
