China 1614905400 Air Oil Separator Replacement Manufacturer, Factory

Element Collapse pressure (COL-P):5 bar

Filtration Media (FILT-MED):Borosilicate micro glass fibre 3 µm

Media type (MED-TYPE):Borosilicate micro glass fibre

Filtration Rating (F-RATE):3 µm

Permissible Flow (FLOW):774 m3/h

Flow direction (FLOW-DIR):Out-In

Holes:15

Hole diameter (HOLE Ø):24 mm

Body Height (H-0):280 mm

Total Height (H-TOTAL):280 mm

Pre-Filter:No

Seal Material (S-MAT):VITON

Type (S-TYPE):O-ring

Amount:2 PC/PCS

Product Net Weight (WEIGHT):10.15 Kg

Largest Inner Diameter (Ø IN-MAX):264 mm

Smallest Inner Diameter (Ø IN-MIN):264 mm

Outer Diameter (Ø OUT):350 mm

Largest Outer Diameter (Ø OUT-MAX):596 mm

Smallest Outer Diameter (Ø OUT-MIN):350 mm

Country of Origin: CHINA

HS-Code:8421999090

Send Inquiry

Product Description

Product Introduction

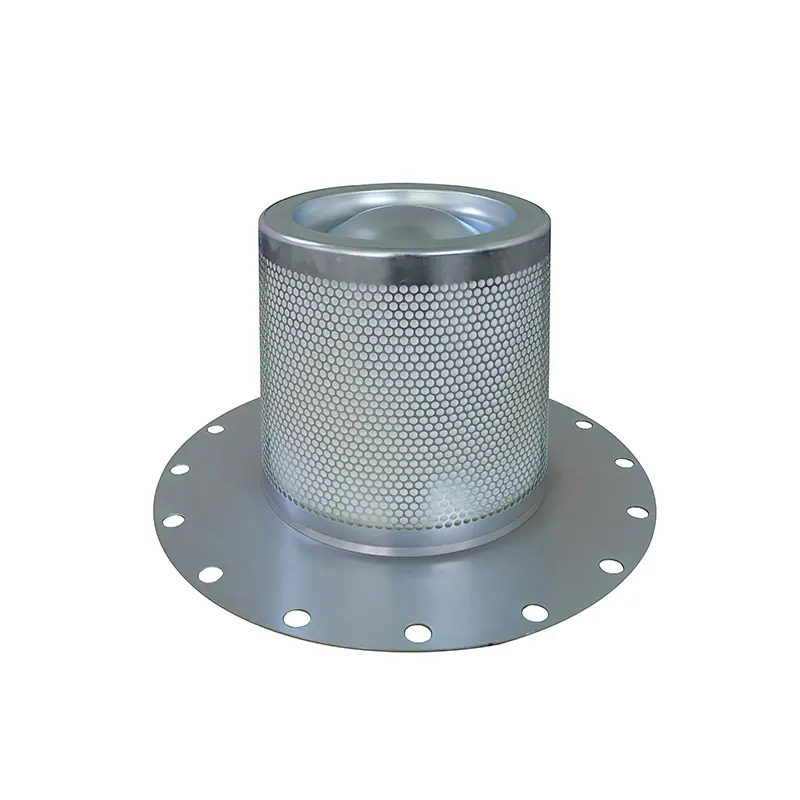

Air oil separator 1614 9054 00 is a winding type filter. It is a critical part of the compressor, manufactured in a state-of-the-art facility to ensure high performance output and enhanced life of the compressor and its components.

The middle frame spiral hook connection structure is adopted, which greatly strengthens the radial crushing strength and prevents frame structure deformation generated by excessively large pressure drops. All parts undergo stringent quality control by experienced technicians and engineers.

The service life of this air oil separator is ≥ 4000 hours, depending on various factors such as the design of the air oil separator barrel, routine maintenance, environmental cleanliness, quality of the lubricating oil, working temperature, and overall operating conditions.

This air oil separator guarantees accurate performance, withstanding robust working conditions and maintaining a high service life. It is usually kept in stock in large quantities and can be shipped promptly.

Specifications & Dimensions

DIMENSION:
596 * 350 * 264 * 280 (15-φ24) mm

Compatible Applications

Atlas Copco GA 90 (from s/n AIF056813)
Atlas Copco GA 110 (from s/n AIF056813)
Atlas Copco G 110
Atlas Copco G 110 W

Cross Reference

Brand Reference	Part Number
ATLAS COPCO	1614905400
ATLAS COPCO	1614905499
ATLAS COPCO	2906056400

Frequently Asked Questions

Q1: What are the dimensions of the 1614 9054 00 air oil separator?

A1: The physical dimensions of this air oil separator are 596*350*264*280 (15-φ24) mm.

Q2: What is the expected service life of this filter?

A2: The service life is ≥ 4000 hours. The exact lifetime depends on external factors including routine maintenance, environmental cleanliness, the quality of the lubricating oil, operating temperatures, and overall system parameters.

Q3: How does the construction design prevent structural deformation?

A3: The design utilizes a middle frame spiral hook connection structure. This significantly reinforces the radial crushing strength, preventing structural deformation that could otherwise be caused by excessive pressure drops.

Q4: Which compressor models is this separator compatible with?

A4: This product is compatible with Atlas Copco models: GA 90 (from s/n AIF056813), GA 110 (from s/n AIF056813), G 110, and G 110 W.

Q5: What are the primary cross-reference part numbers for replacement?

A5: The corresponding cross-reference part numbers are Atlas Copco 1614905400, 1614905499, and 2906056400.
