🔧 Product Overview

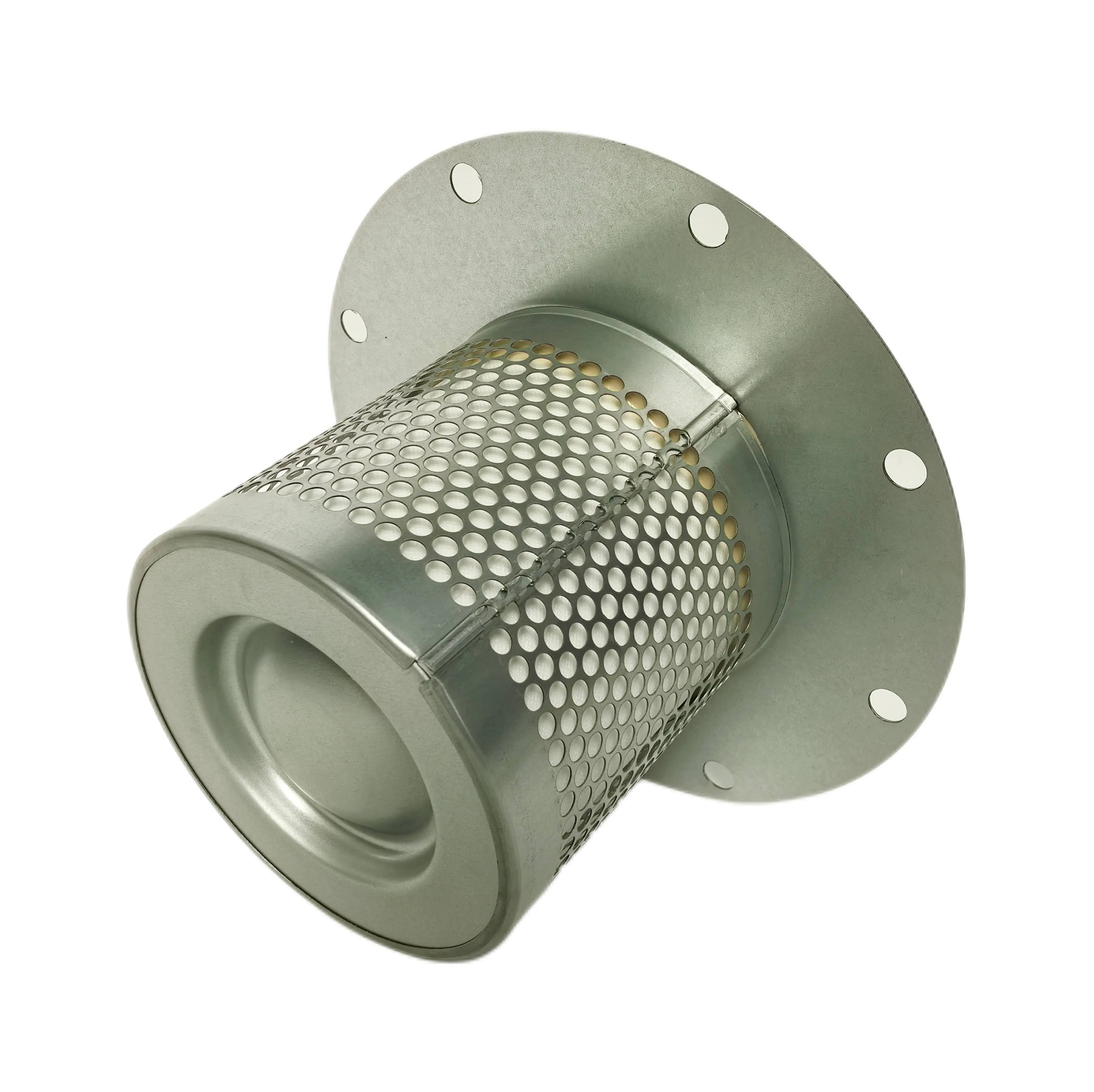

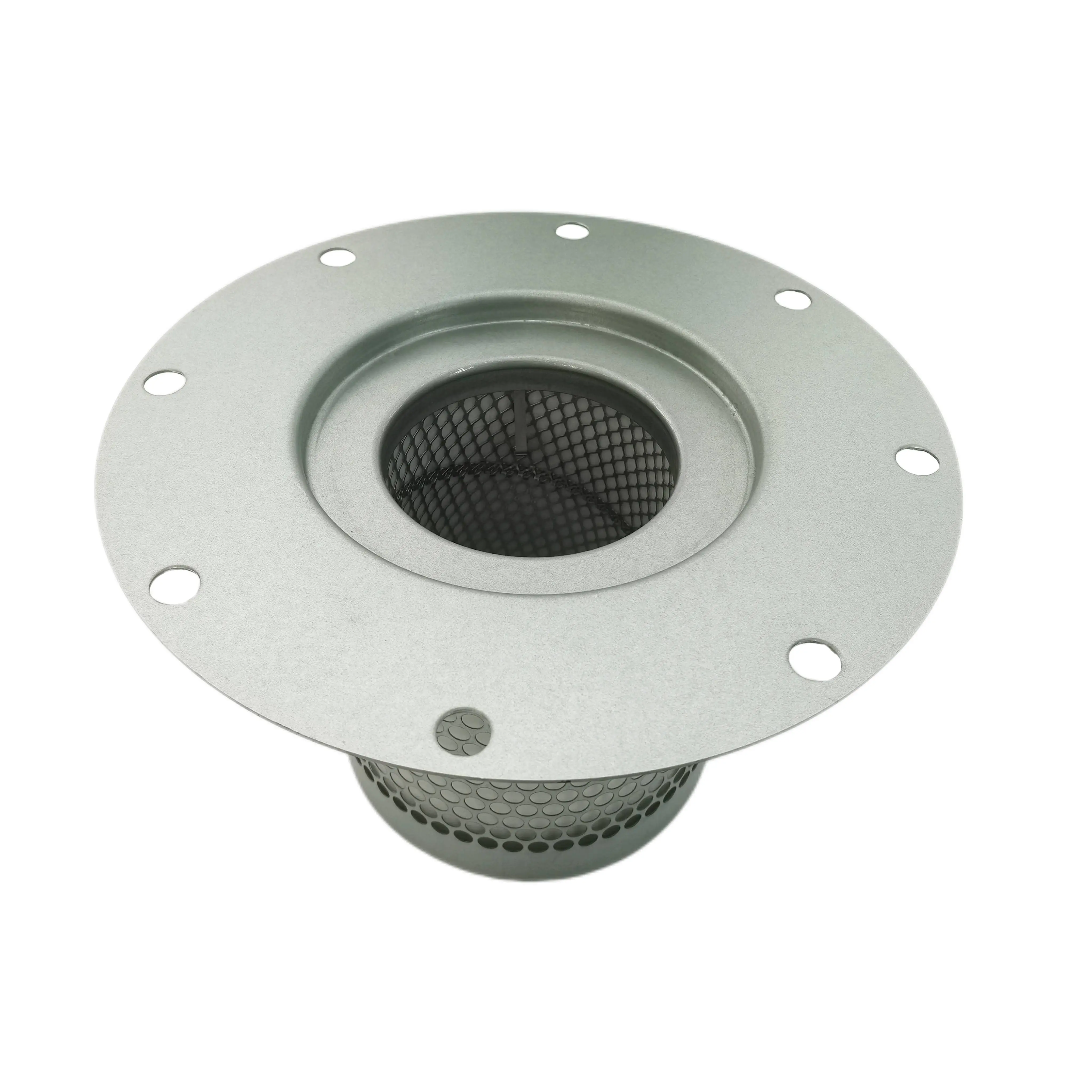

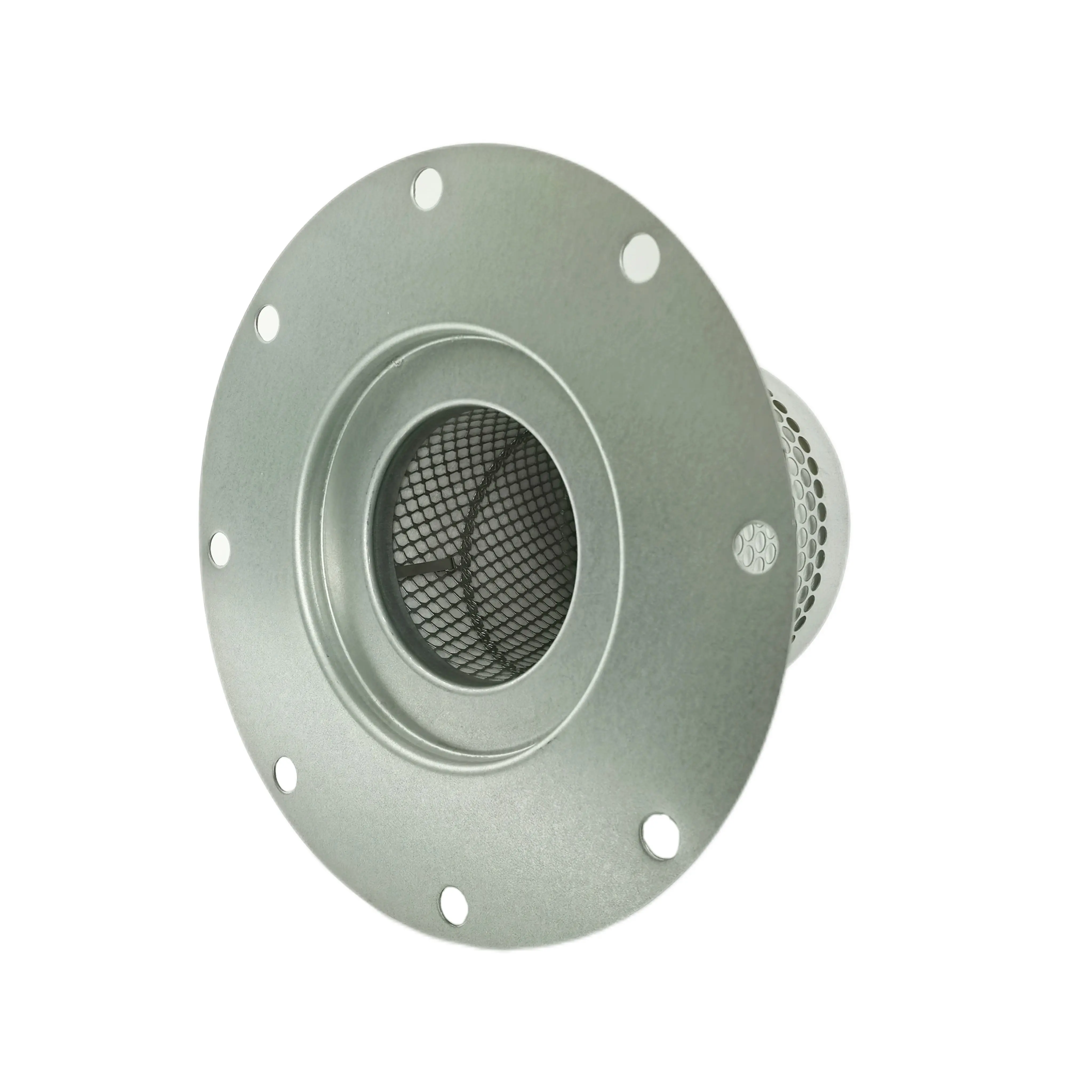

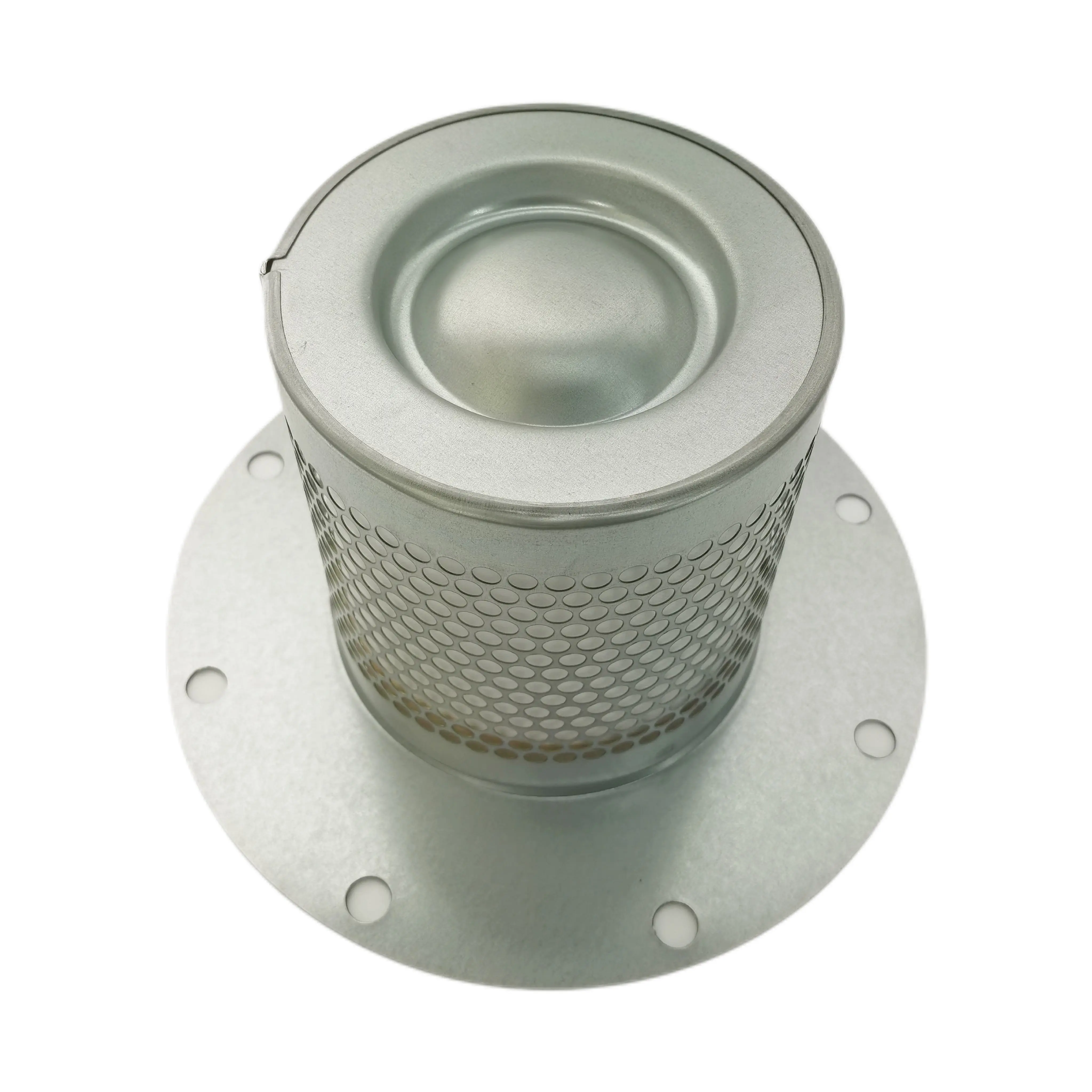

The 1613 8397 00 oil-gas separator features a small size, compact structure, no moving parts, and easy installation. Its primary function is to utilize the density difference between oil and gas to separate oil, gas, water, and other components in a mixture under low-pressure conditions — preventing cavitation, gas lock, and other faults while improving equipment operation efficiency and reliability. It separates oil from compressor air filter parts, keeps compressed air cleaner, and returns clean oil back to the oil tank.
🏭 Material & Performance
The 1613 8397 00 is manufactured using ultra-fine glass fiber composite filter material produced by HV and Lydall in the United States, ensuring superior filtration performance and long-term durability.
-
✅
Oil Mist Particle Control: Compressed air oil mist particles controlled to below 0.1μm under normal operating conditions.
-
✅
Initial Saturation Pressure Drop: No more than 0.02 MPa at rated operating pressure and rated flow.
-
✅
Operating Pressure Drop Limit: No more than 0.1 MPa under normal operating conditions.
-
✅
Service Life: No less than 4,000 hours under normal operating conditions.
❓ Frequently Asked Questions
Q
What is the main function of the 1613 8397 00 oil-gas separator?
The 1613 8397 00 is designed to separate oil, gas, water, and other components from a mixture using the density difference between oil and gas under low-pressure conditions. It helps prevent cavitation and gas lock faults, improves equipment efficiency, keeps compressed air clean, and returns clean oil back to the oil tank.
Q
What filter material is used in the 1613 8397 00?
It is made of ultra-fine glass fiber composite filter material produced by HV and Lydall in the United States — both recognized industry leaders in high-performance filtration media, ensuring reliable and consistent filtration quality.
Q
What is the oil mist filtration efficiency of the 1613 8397 00?
Under normal operating conditions, the 1613 8397 00 can control compressed air oil mist particles to below 0.1μm, ensuring high-quality clean air output from the compressor system.
Q
What is the service life of the 1613 8397 00 oil-gas separator?
Under normal operating conditions with a pressure drop no more than 0.1 MPa, the 1613 8397 00 has a service life of no less than 4,000 hours, offering a cost-effective and long-lasting solution for your compressor system.
Q
What is the initial saturation pressure drop of the 1613 8397 00?
At rated operating pressure and rated flow, the initial saturation pressure drop of the 1613 8397 00 is no more than 0.02 MPa, indicating a low-resistance design that minimizes energy consumption and system load.
Q
Is the 1613 8397 00 easy to install and maintain?
Yes. The 1613 8397 00 features a compact structure with no moving parts, making it straightforward to install and maintain. Its simple design reduces the risk of mechanical failure and minimizes downtime during routine maintenance or replacement.
